3 cabin layout. Excludes saloon and galley areas

4 cabin layout. Excludes saloon and galley areas

Excludes galley area. Cannot be taken with option B8-1016, B8-1760/70

Excludes galley area. Cannot be taken with option B8-1015, B8-1770

Comes with bow thruster controller at Flybridge Helm

(Requires B8-2500). Not to be ordered with option B8-2510, B8-2515

Combining Engine and Bow Thruster control (Requires B8-2500). Bow thruster controller from option B8-2500 to be installed at Internal Helm instead of Flybridge helm. Not to be ordered with option B8-2505, B2515

Combining Engine and Bow Thruster control (Requires B8-2500). Bow thruster controller from option B8-2500 will not be installed on boat. Not to be ordered with option B8-2505, B8-2510

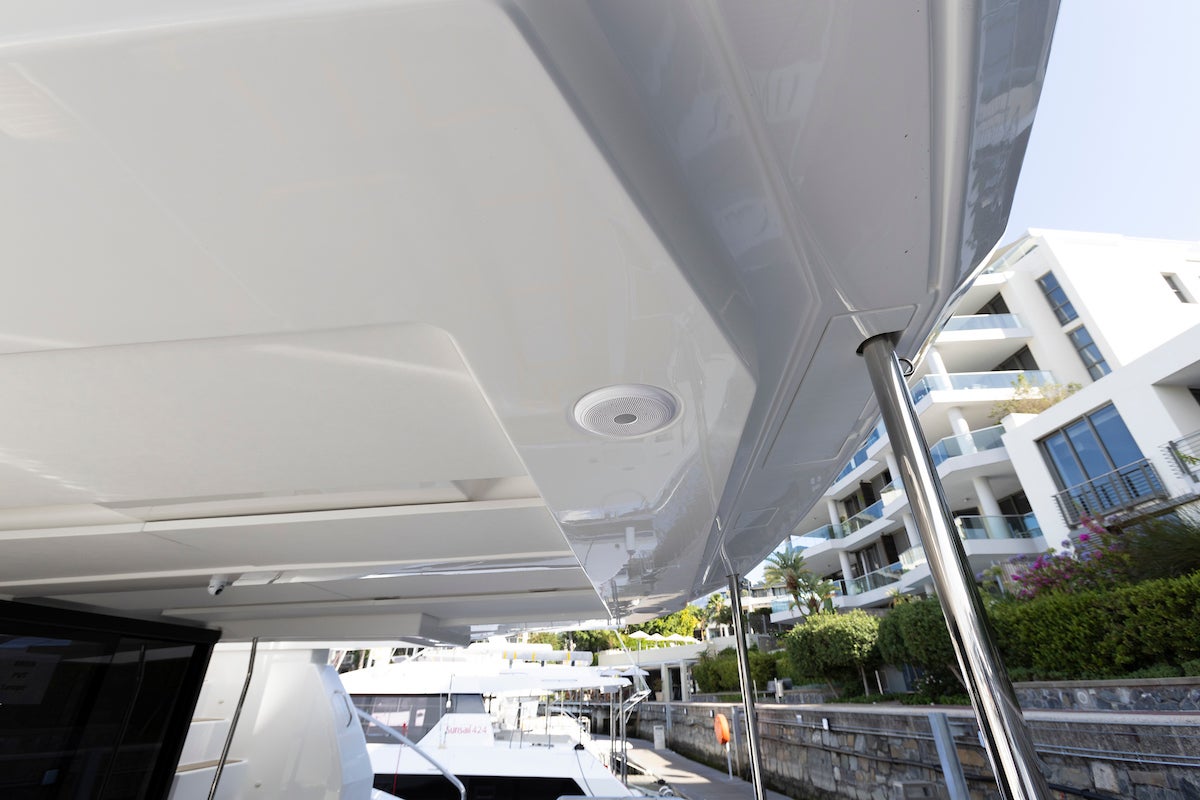

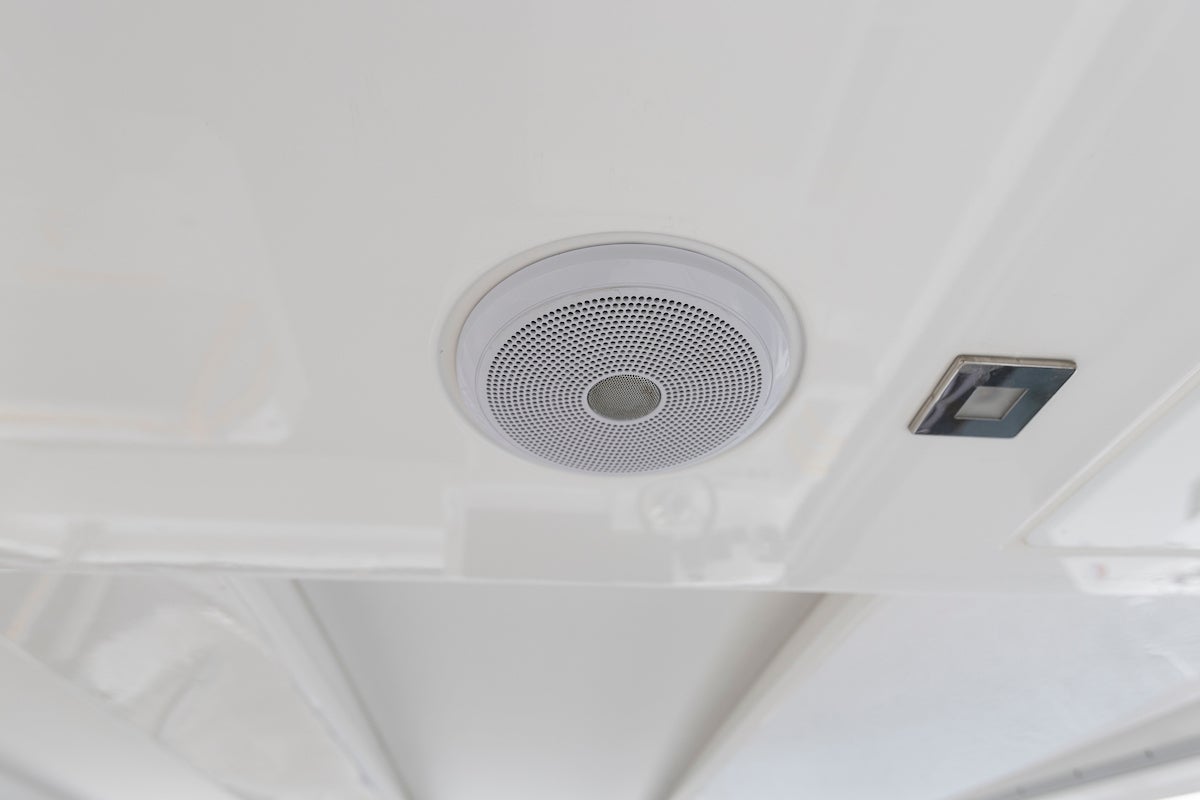

Includes Wifi and Bluetooth connectivity. Speakers in saloon (2), aft cockpit (2), fwd. cockpit (2) & flybridge (2). Wired remote controls in fwd cockpit (1), aft cockpit (1) & flybridge (1). Note Raymarine MFD’s (not included in option) & personal wireless devices (only if connected wirelessly to Raymarine MFD via the Raymarine APP) can control system

Includes VHF (Multizone with AIS receiver) at internal helm & additional VHF handset at flybridge helm, p70Rs autopilot display at internal and p70s autopilot display at flybridge helm, AXIOM XL16 Multifunction display in lieu of AXIOM7 Multifunction display at Helmstation. With retractable depth transducer

(Requires Base Pack. Not to be ordered with B8-3311/12)

in lieu of an AXIOM XL16 Multifunction display in option B8-3304 - Base pack. (Requires base pack, should not be ordered with B8-3310)

(Requires Base Pack. Should only be ordered with B8-3311. Not to be ordered with B8-3310)

(Requires Base Pack). Not to be ordered with B8-3346. (B8-3346 comes with an upgraded RV (Real Vision) AXIOM12 MFD which fulfils the functions of this option)

(Requires Base Pack)

Includes digital solid state wireless 24nm 18" Radome scanner (Requires Base Pack)

Includes digital solid state 24nm Radar with Collision Avoidance detection (Requires Base Pack)

Includes RV-300 Plastic Thru-Hull transducer and 1 x AXIOM12 RV Multifunction display at Internal Helm. (Requires Base Pack). Not to be ordered with B8-3313

(Requires base pack)

including AR200 GPS (Requires base pack) in lieu of base pack GPS

Includes Ray 73 VHF (Multizone with AIS receiver) at internal helm & additional VHF handset at flybridge helm, p70Rs autopilot display at internal and p70s autopilot display at flybridge helm, 2 x AXIOM12 Multifunction displays in lieu of AXIOM7 Multifunction display at Helmstation c/w retractable depth transducer

Includes 2 x 30A port and 2 x 30A stbd shore power inlets with 2 x heavy duty 50ft shore powerlines, AC switch panel, 5000W inverter/charger (in lieu of standard 3000W inverter), Battery management system allowing monitoring on Multifunction display, AC outlets in cabins, saloon and galley

Includes 2 x 16A port and 2 x 16A stbd shore power inlets with 2 x heavy duty 50ft shore powerlines, AC switch panel, 220V 5000W inverter/charger (in lieu of standard 3000W inverter), Hot water cylinder and Convection microwave voltage conversion to 220V, Battery management system allowing monitoring on Multifunction display, AC outlets in cabins, saloon and galley

Includes 1 x AXIOM12 Multifunction display at internal helm. 2 x 6‐Way Membrane switch (Saloon and Helm Station). Control of all 12V DC systems. Monitoring of all Batteries, all fluid levels, and critical Alarms. (Requires Base Pack)

Includes 2 heavy duty 50ft 30amp shore power lines, AC switch panel, 110V 5000W inverter/charger (in lieu of standard 3000W inverter), Battery management system allowing monitoring on Multifunction display, AC outlets in cabins, saloon and galley

Recommended with shore power (B8-4100/4110, B8-41MM/42MM)

(Requires B8-4500)

(Requires B8-4500)

(Requires B8-4500)

Operated from Multifunction display at helm (Not to be ordered with option B8-5750)

Includes 4 x 200Ah Lithium Ion batteries (LiFePO4). (Only for boats with shore power (B8-4100/4110, B8-41MM/42MM) or genset options (B8-5210/5211/ 5225/5230). Recommend taking option B8-5750 with this option. Not to be ordered with B8-4500)

supplied from port fuel tank, fuel transfer ability from stbd to port tank. Analogue control panel without Auto Start/stop function. Only for boats with shore power (B8-4100/4110, B8-41MM/42MM)

supplied from port fuel tank, fuel transfer ability from stbd to port tank. Analogue control panel without Auto Start/stop function. Only for boats with shore power (B8-4100/4110, B8-41MM/42MM)

(includes fuel supply, ventilation blower, auxiliary fuel/water pumps, light, exhaust & cooling water systems with through hull fittings. Excludes genset unit & control panel, battery & AC wiring).

For TVs no larger than 40 inches. Requires shore power options (B8-4100/4110, B8-41MM/42MM)

For TVs between 40 to 50 inches. Requires shore power options (B8-4100/4110,B8-41MM/42MM)

Includes button on MFD at helm to link engine batteries to house batteries (Not to be ordered with option B8-4550)

(for future watermaker installation)

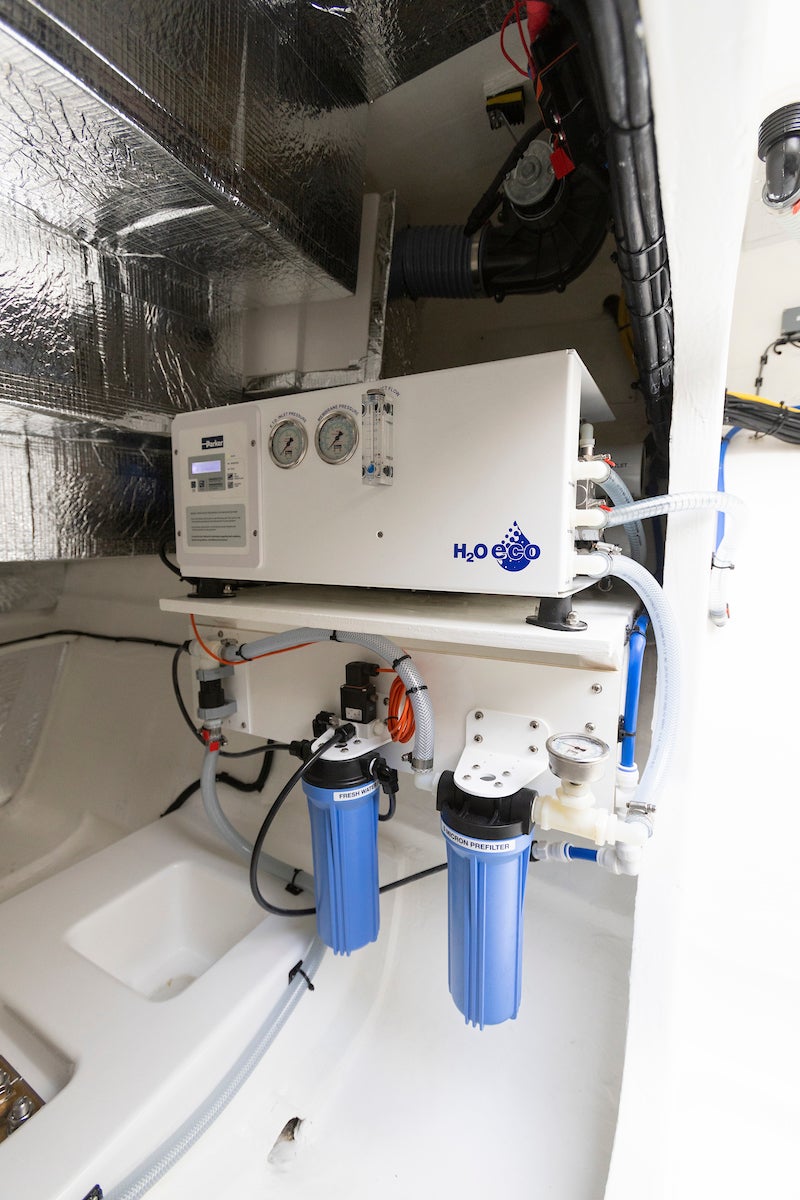

H2O ECO 400GPD Sea Recovery 63 ltr/ 17 Usgal per hr, 12V

H2O ECO 600GPD Sea Recovery 95 ltr/ 25 Usgal per hr, 12V

dual fresh/salt water system on foredeck and fresh water outlets on flybridge and in aft cockpit

Hot/cold water in lieu of cold only

Not to be ordered with B8-7740/7741/7755/7756/7758

Standard Charcoal (Grey)

Captain's Navy (Blue)

in aft cockpit, fwd. cockpit, flybridge, flybridge steps, transom steps - not to be ordered with B8-8630, B8-8635

in aft cockpit, fwd. cockpit, flybridge, flybridge steps, transom steps - not to be ordered with B8-8630, B8-8635

in aft cockpit, fwd. cockpit, flybridge, flybridge steps, transom steps, lifting platform - Can only be ordered with B8-8630, B8-8635

in aft cockpit, fwd. cockpit, flybridge, flybridge steps, transom steps, lifting platform - Can only be ordered with B8-8630, B8-8635
